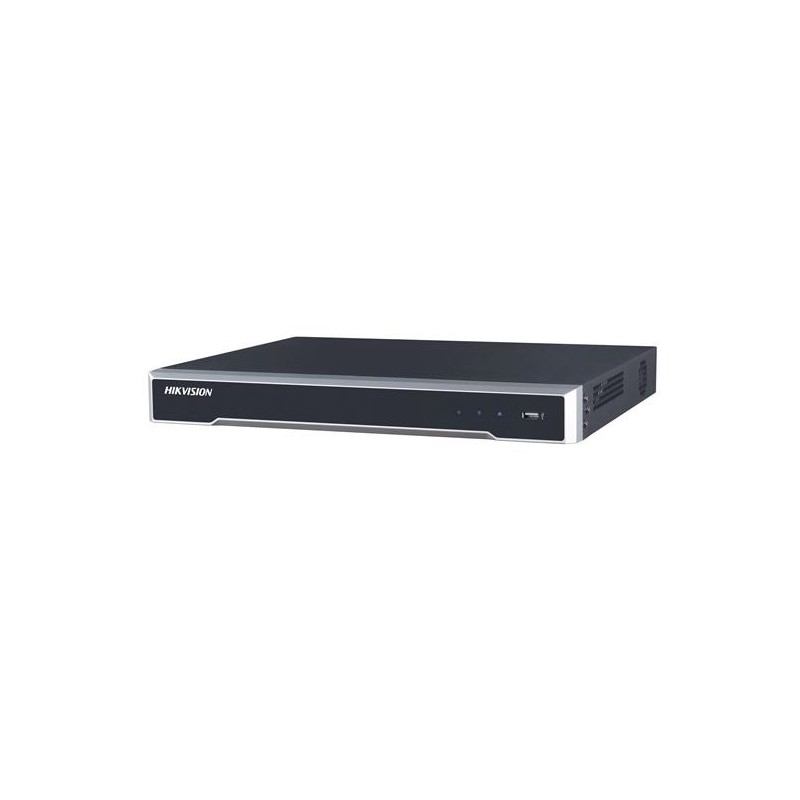

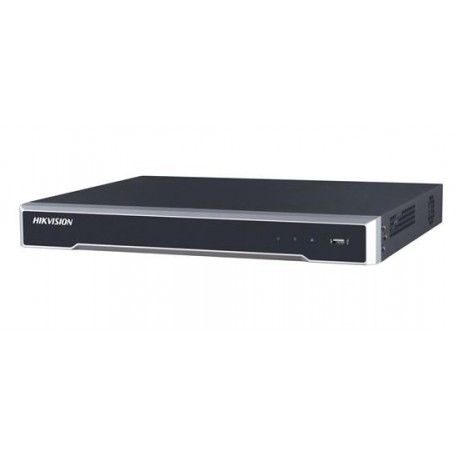

Hikvision DS-7608NXI-K2, 8 kanaals NVR

De Hikvision DS-7608NI-K2/A is voorzien van alarmingangen en kan voorzien worden van 2 harde schijven. Deze NVR neemt 8 kanalen real time op. Voor hogere resoluties neemt het maximaal aantal camera’s en/of het aantal frames af. De som van de ingestelde bandbreedtes per camera's levert de totale recording bandbreedte op, en deze bepaalt de juiste NVR.

Video/Audio Input
IP video input: | 8-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 80Mbps
Outgoing bandwidth: | 160Mbps
Remote connection: | 128
Video/Audio Output
HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: | 8-ch
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 8-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 6TB capacity for each HDD
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: | Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: | 4-ch
Alarm Out: | 1-ch
General
Power Supply: | 100 to 240VAC
Consumption(without hard disk and POE): | ≤ 15 W
Working Temperature: | -10 ºC ~ +55 ºC
Working Humidity: | 10 % ~ 90 %
Chassis: | 385 mm chassis
Dimensions: | 385 × 315× 52 mm
Weight(without HDD): | ≤ 3 kg
